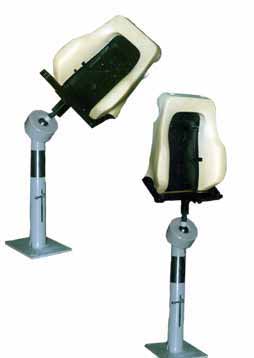

The
spherical holder is a very versatile and easy to use tool, which has been
developped to facilitate assembly operations, production or maintenance
of equipment or of part of it, whenever is required to have continueous
movements, positioning and rotations in the space, but having the piece
firmly attached to a stable working station. The holder is adjustated by
means of a pneumatic system driven by a pedal. On the holder might be positioned
all the tools needed by the opterator. On the front body of the spherical
holder are situated three screws which increase or reduce the breaking action
on the unlocked sphere, avoiding involuntary movement of the piece to be
worked, which is linked to the sphere. In this sense only a manual operation
by the worker, with the sphere in the unlocked position, will move the piece
to be worked. The special heat treatments, to which the high quality materials
are subjected, makes this equipment long lasting in time without necessity
of particular and considerable ammount of maintenance. The very simple design
and the versatility of the spherical holder enables different configurations
and the application of any option tools, also compatible between themselves.
Infact using a double spherical holder it will be possible to have a rotation
of 180°. The dimentions and standard configuration showed by catalogue
are merely indicative and might be changed according to peculiar customer's
production needs. The structure does not present free moving parts, which
might cause demages to the user and therefore no specific safety devices
are need. |
