Proge61
Possible configurations and optional ones














Application of a gas
spring for numerous
height regulations
(Nr.2 positions
closed - open)
















The application of
a pneumatic cylinder
for numerous height regulations
(Nr.2 positions
closed - open)

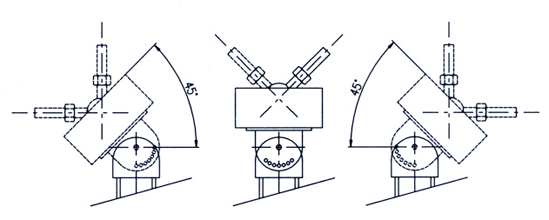

System of rotation on
one axis of the spherical
group in Nr.7 positions
with manual or pneumatic block
(possibility of a double spherical hinge)

Levels of standard work or with measures and forms on the clients request



technical data
Supply Compressed air - non filtrated as well as non lubricated
Pressure 0 - 6 Bar
Consumption ca. 01 dm3 of air - for every action
Attack Male M22 x 1.5 in length ca. 120mm.
Sphere rotation 90° in the space
Material sphere Treated C40 steel
